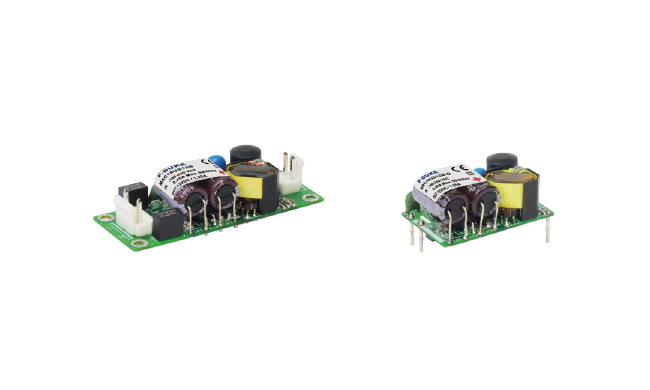

MAC15

• Universal AC Input: The MAC15 series accepts a wide range of AC input voltages (85-264VAC), making them suitable for global use.
• Multiple Output Voltages: They offer various output voltage options (3.3V, 5V, 12V, 15V, 24V, etc.) to cater to different applications.
• High Efficiency: These power supplies boast high efficiency (up to 90%), reducing energy consumption and operating costs.
• Compact Size: The MAC15 series comes in a compact package, making them easy to integrate into space-constrained designs.
• Protections: They include protections against over-voltage, over-current, and short circuits to ensure safe operation.
• Safety Certifications: These power supplies are certified to meet various safety standards, including UL, cUL, and TUV..

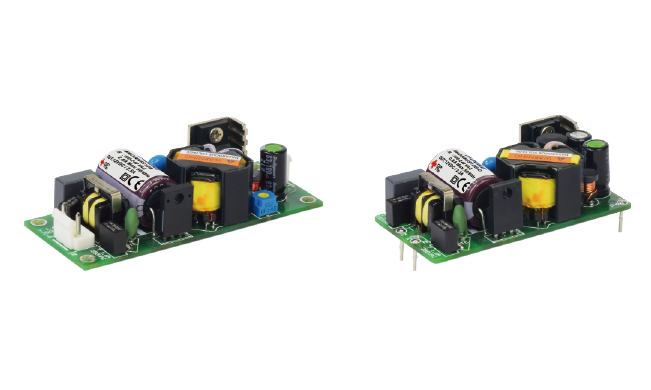

MAD30

• Universal Input Voltage: It accepts a wide range of input voltages, from 90 to 264 VAC or 120 to 370 VDC, making it compatible with various power sources worldwide.
• Single, Dual, and Triple Output Models: The MAD30 series offers models with single, dual, or triple output voltages, providing flexibility for different applications.
• High Efficiency: The power supply is designed to be highly efficient, typically around 88%, which helps to reduce energy consumption and operating costs.
• Compact Size:It comes in a compact package with a small footprint, making it easy to integrate into various systems and equipment.
• Medical Safety Approvals: The MAD30 series is certified to meet medical safety standards, making it suitable for use in medical devices and equipment.
• Wide Operating Temperature Range: It can operate reliably over a wide temperature range, from -20°C to 70°C, ensuring stable performance in different environments.
• Protection Features: The power supply includes built-in protection features such as over-voltage protection, over-current protection, and short-circuit protection to safeguard the connected equipment and prevent damage.
• Low Ripple and Noise: It provides a clean and stable output voltage with low ripple and noise, ensuring the optimal performance of sensitive electronic devices.
• Long Lifespan: The MAD30 series is designed for long-term reliability, with a typical lifespan of over 50,000 hours.
• Variety of Mounting Options: It offers various mounting options, including chassis mount, DIN rail mount, and wall mount, providing flexibility for installation.

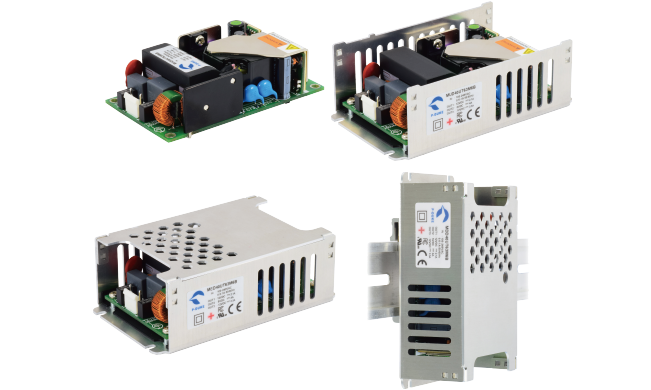

MAD40 Multi

• Universal AC input: 85-264 VAC
• 4000 VAC isolation
• Multiple output options: -15V, -12V, -5V, 3.3V, 5V, 12V, 15V, 24V
• User-selectable output configurations
• 40 Watts continuous power
• High efficiency up to 88%
• Over-voltage protection
• Over-current protection
• Short-circuit protection
• Medical safety approvals: UL/cUL 60601-1, EN 60601-1
• EMC compliance: EN 55011, EN 55022 Class B
• Wide range: -20°C to 70°C
• Compact size: 3.00" x 5.00" x 1.58"
• Chassis mount
• DIN rail mount (optional)

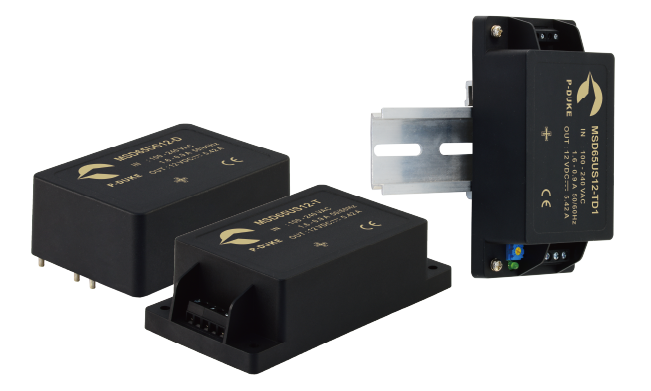

MSD65

• Universal AC input: 85 - 264 VAC or 120 - 370 VDC
• Active Power Factor Correction (PFC)
• Single output models: 12V, 15V, 24V, 28V, 36V, 48V, 54V
• User-selectable output voltage
• 65 Watts continuous power
• High efficiency up to 93%
• Over-voltage protection
• Over-current protection
• Short-circuit protection
• Over-temperature protection
• Medical safety approvals: UL/cUL 60601-1, EN 60601-1
• EMC compliance: EN 55011, EN 55022 Class B
• Wide range: -40°C to +70°C (with derating)
• Compact size: 3.00" x 5.00" x 1.61"
• Chassis mount

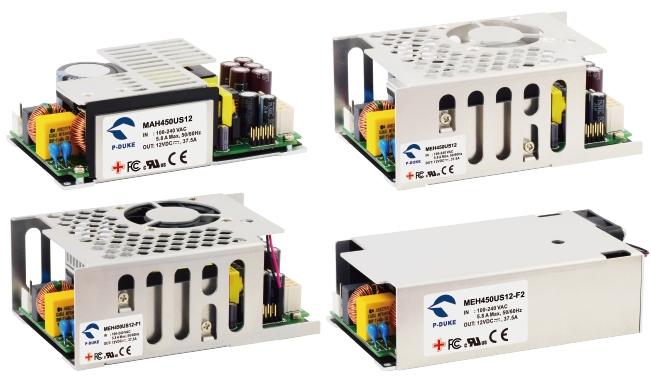

MAH450

• Universal AC input voltage: 85 - 264 VAC or 120 - 370 VDC
• Active Power Factor Correction (PFC)
• Multiple single output voltage options available: 12V, 15V, 24V, 28V, 36V, 48V
• User-selectable output voltage via potentiometer
• 450 Watts continuous power
• Up to 94% efficiency, reducing energy consumption and operating costs
• Over-voltage protection (OVP)
• Over-current protection (OCP)
• Short-circuit protection (SCP)
• Over-temperature protection (OTP)
• Inrush current limiting
• Brown-out protection
• Medical safety approvals: UL/cUL 60601-1, EN 60601-1, 3rd edition
• EMC compliance: EN 55011/EN 55032 Class B
• Wide operating temperature range: -40°C to +85°C (with derating)

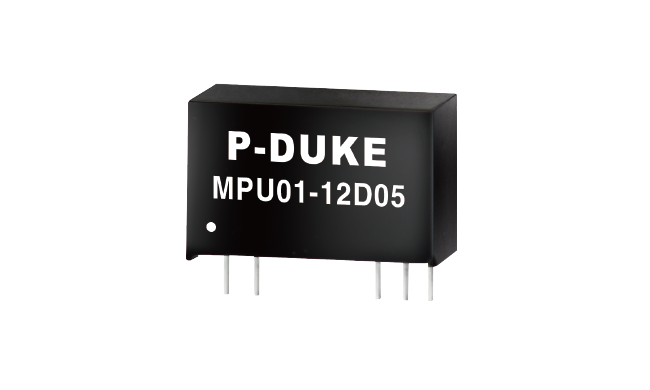

MPU01

• 100-240 VAC input, 50/60 Hz
• Universal input voltage for worldwide use
• Multiple output voltage options available: 3V, 4.5V, 5V, 6V, 7.5V, 9V, 12V
• User-selectable output voltage via a switch
• Up to 1000mA (1A) output current
• Includes 6 interchangeable tips for various devices
• Tip sizes: 2.1mm x 5.5mm, 2.5mm x 5.5mm, 3.5mm x 1.35mm, 4.0mm x 1.7mm, 4.8mm x 1.7mm, 5.5mm x 2.1mm
• Over-current protection
• Short-circuit protection

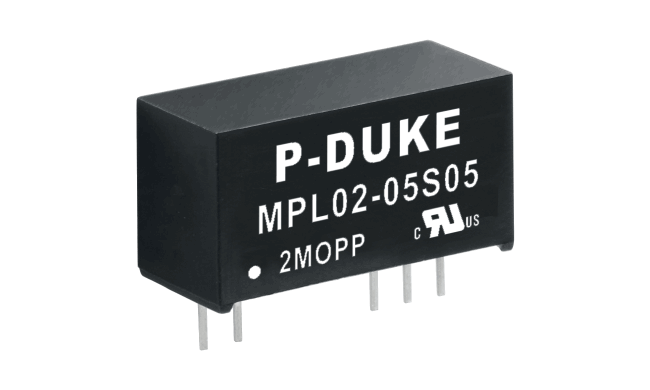

MPL02

• "5000VAC Reinforced 2xMOPP Insulation, Rated for 250VAC Working Voltage
• 8mm Clearance & Creepage Distance
• Leakage Current < 2μA
• Approved to IEC/EN/ANSI/AAMI ES 60601-1 & IEC/EN/UL 62368-1
• Compact SIP-8 Industrial Standard Package
• 2-1 Input Voltage with Regulated Output
• Operating Altitude: up to 5000m
• Operating Temperature: -40℃ to +105℃

MOP03 / MOP03W

• Universal AC input: 85 - 264 VAC
• Frequency range: 47 - 63 Hz
• Multiple output voltage options: 5V, 9V, 12V, 15V, 24V
• User-selectable output voltage via switches
• 3 Watts continuous power
• Up to 75% efficiency
• Short circuit protection
• Over current protection
• Over voltage protection
• UL Listed
• CE marked
• Operating Temperature:0°C to 40°C
• Dimensions (MOP03): 2.16" x 1.57" x 1.10" (55mm x 40mm x 28mm)
• Dimensions (MOP03W): 2.16" x 1.57" x 1.26" (55mm x 40mm x 32mm)

MOP06 / MOP06W

• Universal AC input: 85 - 264 VAC
• Frequency range: 47 - 63 Hz
• Multiple output voltage options: 3V, 4.5V, 5V, 6V, 7.5V, 9V, 12V
• User-selectable output voltage via switches
• 6 Watts continuous power
• Up to 80% efficiency
• Short circuit protection
• Over current protection
• Over voltage protection
• UL Listed
• CE marked
• GS certified
• Operating Temperature: 0°C to 40°C
• Dimensions (MOP06): 2.76" x 1.57" x 1.10" (70mm x 40mm x 28mm)
• Dimensions (MOP06W): 2.76" x 1.57" x 1.26" (70mm x 40mm x 32mm)

MOP10/MOP10W

• Universal AC input: 85-264 VAC
• Frequency range: 47-63 Hz
• Multiple output voltage options: 3V, 4.5V, 5V, 6V, 7.5V, 9V, 12V
• User-selectable output voltage via switches
• 10 Watts continuous power
• Up to 82% efficiency
• Short circuit protection
• Over current protection
• Over voltage protection
• UL Listed
• CE marked
• GS certified
• Operating Temperature: 0°C to 40°C
• Dimensions (MOP10): 3.15" x 1.57" x 1.10" (80mm x 40mm x 28mm)
• Dimensions (MOP10W): 3.15" x 1.57" x 1.26" (80mm x 40mm x 32mm)
