Looking for cutting-edge industrial automation solutions? Look no further than Abacus Technologies, your trusted source for Panasonic Industrial Automation products. We proudly offer the WH Series of web-enabled panels, which deliver unparalleled control and monitoring capabilities for even the most demanding IIoT applications. With the WH Series, users can enjoy advanced functionality and remote access from any browser or device, be it a smartphone, tablet, or computer. Trust Abacus Technologies to provide you with the tools you need to streamline your operations and stay ahead in the rapidly evolving world of industrial automation.
Product Highlight
WH Series Programmable Display Series
Features
WH Series Programmable Display Series
Features
FP0H Series Ultra-Compact Controllers are Panasonic’s solution for mid-size applications. They integrate various communication protocols with advanced hardware and software features to maximize efficiency and flexibility.
Features and Benefits of the FP0H Series:
- Two Ethernet ports
- Modular structure
- Built-in 4-axis pulse outputs
- SD Card for data logging and program transferring
Two Ethernet Ports (Single IP Address)
The standard type FP0H models are equipped with two Ethernet ports with a single IP address, to communicate with up to 9 industrial devices over Mewtocol, Ethernet/IP, Modbus TCP, and MC protocols.
Modular structure
The FP0H series functionality can be expanded by adding up to four FP0H expansion cards on the left side and/or three FP0R/FPG expansion cards (the previous series). The popular expansion cards are digital I/O units, analog I/O units, positioning units, positioning RTEX units.

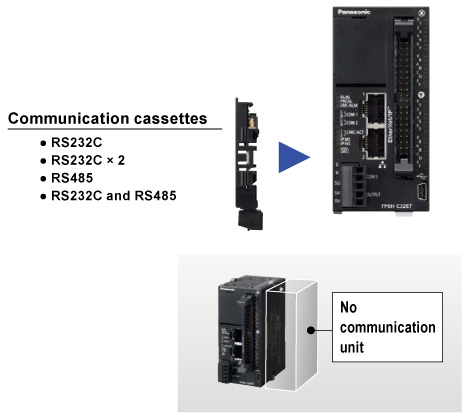

Cassettes System
Communication cassettes add extra serial ports to the FP0H PLCs at a lower cost and without occupying extra space.

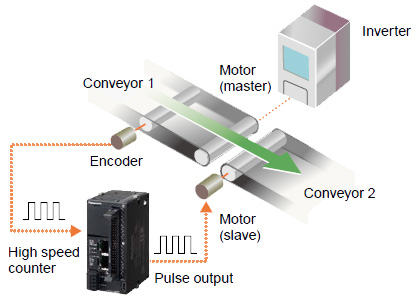

Built-in 4-axis Pulse Outputs
Equipped with high-speed counters and pulse outputs, all FP0H series models can control up to 4 axes individually or with linear interpolation. These CPU units can easily handle up to four master/slave motions.

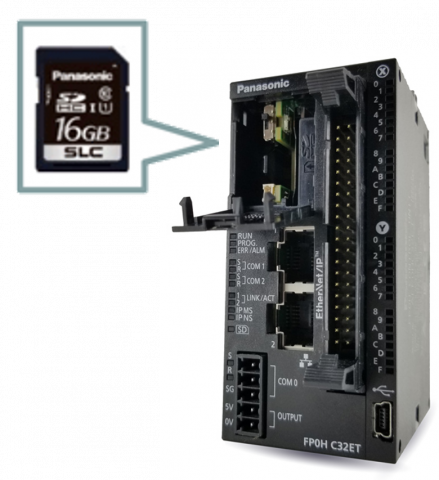

SD Card
Using an SD memory card, the standard type FP0H models can perform data logging with 4 active files simultaneously. The SD card can also be used to transfer programs between the same PLCs or from and to our PC PLC software, FPWIN PRO.
